Hinged doors with pneumatic shock absobers

1 of 8

Modem
Built into the machine for remote service (REDCASE).

2 of 8

Product metering belt
To line up the products.

3 of 8

Customized solutions are of course possible. Please contact us!

4 of 8

In- & outfeed conveyors
Increase your production capacity by extending your Ultrasonic Slicer with in- and outfeed conveyors.

5 of 8

Touchscreen
Full colour touchscreen (in many laguages) for easy operation.

6 of 8

Cleaning unit with UV-C-light for complete disinfection
Cutting residu is stripped of the blade by two silicon scrapers, then the blade enters the fresh water unit and finally the UV-C-light provides complete disinfection.

7 of 8

Swivel casters

8 of 8

Boundless cutting and slicing with the

Inline Ultrasonic Slicer

Boundless cutting and slicing with the INLINE ULTRASONIC SLICER

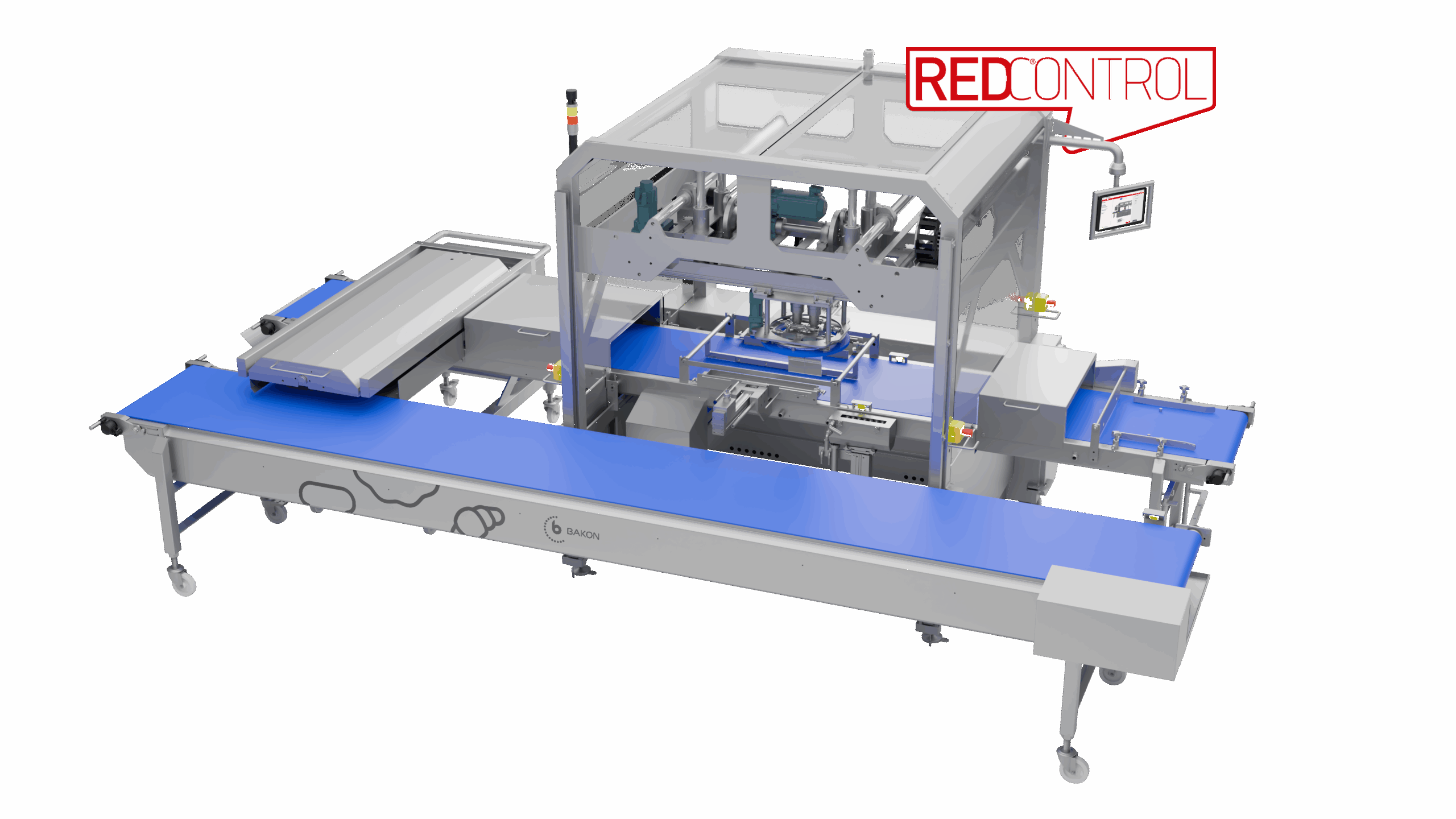

The INLINE ULTRASONIC SLICER is a high capacity cutting machine for precise cutting and slicing of round and rectangular products.

BAKON ultrasonic cutting machines excel, besides the premium cutting quality, due to their robustness, high quality materials, reliability and accuracy in cutting. The machines are fast and precise because of the unique servo technology and therefore achieve maximum results.

Advanced software allows you to set or change product parameters and cutting patterns easily through the icons on the full color touch screen.

Key features

  • Multiple blades for higher production capacity
  • Equipped with a Lexan glass protection hood
  • Revolutionary cleaning system with UV-C-light for fast and thorough cleaning and disinfection
  • For bakings trays in sizes from 100 x 600 up to 800 x 600 mm (larger possible on request)
  • Key features
  • For bakings trays in sizes from 100 x 600 up to 800 x 600 mm.
  • Multiple blades for higher production capacity.
  • Multiple password levels to assign different access levels.
  • Modem in the machine for remote service.
  • For safety reasons equipped with a protection hood (Lexan glass) with hinged doors with pneumatic shock absobers.
  • Revolutionary cleaning system with UV-C-light for fast and thorough cleaning and disinfection.
  • Full colour LCD touch screen in many languages.
  • Option: A quick-fit system to change blades for efficient cutting in smaller or larger trays.
  • No need to select products because of smart vision technology with automatic product recognition (optional).
  • Option: Personal key cards for safe and fast login (to prevent unwanted login with other codes).
  • Operation

Products will be placed manually or by means of a conveyor at the input side of the machine. The ultrasonic cutting machine will start automatically or with the start button and guide the products to the correct cutting position underneath the ultrasonic cutting blade(s).

Precise and accurate slicing is accomplished by the ultrasonic blades which are mounted on a servo driven bridge over the conveyor belt. The use of the servo driven bridge makes it possible to bring the blades in any desired position and allow cutting in various shapes and sizes.

Programming and setting of the different parameters (number of portions, cutting speed, size trim edge, etc.) is easily done by using the full colour LCD touch screen. The overall production capacity is variable and can also be set on the touch screen.

  • Benefits
  • Robust
  • Safe
  • High capacity
  • Servo technology
  • HACCP
  • Options
  • Cleaning unit
    First the blades are cleaned on both sides with water in a fully waterproof sealed station; next a scraper removes any residues and then dries the blade. Thorough disinfection takes place in two other stations with UV-C light. The complete cycle requires 20 seconds and can be done after each product, after 5 or 10 products or at the end.
  • Servomatic rotation device
    For round products
  • Wide choice of cutting blades
  • Machine capacity

High

  • Products

For rectangular and round products
with or without baking trays
Product trays max. 800 x 600 mm

  • Stand-alone machine
  • Inline machine
  • Dimensions

Standard model
Working height 950 mm
315 mm half wave blade

  • Technical specifications

Voltage
3 x 400 VAC + PE + Neutral 50 Hz

Power
+ 6 kW

Air consumption
+ 50 ltr. per minute at 6 bar
