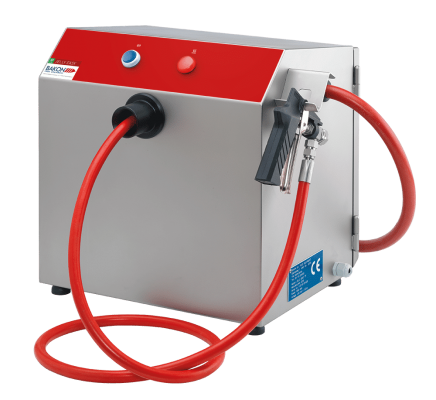

Manual glaze spraying machine_easy_005_Bakon

Spraygun
Spray pressure fixed 3.2 bar

1 of 2

Jeally Easy TT
Table Top
___________

Jelly Easy I
Movable with 1 spray gun

Jelly Easy II
Movable with 2 spray guns

2 of 2

Let your products glaze and shine with the

Jelly Easy Range

Let your products glaze and shine with the JELLY EASY RANGE

The range of the JELLY EASY machines consists of three models: the JELLY EASY TT, the JELLY EASY I with 1 spray gun and the JELLY EASY II with 2 spray guns.

The JELLY EASY TT (Table Top) has been developed for those circumstances which ask for an easy to operate glaze spraying machine.

The JELLY EASY I and II are similar to the table top model in terms of functionality, but are movable on swivel wheels and the machine cabinet has room for two containers.

These modern machines are developed to spray all kind of ready-to-use glaze. All spraying machines from the JELLY EASY RANGE have a good price – quality ratio.

Key features

  • Short heating time
  • Output of 400 cc/min. per spray gun
  • Integrated heater and compressor
  • Easy to clean
  • Suitable for 'Bag-in-box ready to use' glaze
  • Key features
  • Short heating time.
  • Fixed temperature at 90°C.
  • Temperature of the heated hose is fixed at 70°C.
  • Output of 400 cc / min. per spray gun.
  • Sprays almost any type of glaze.
  • Suitable for the use of 'Bag-in-box ready to use' glaze.
  • Integrated heater and compressor.
  • Stainless steel and maintenance free.
  • Operation

The machine from the JELLY EASY RANGE are equipped with a basic control panel with an on/off button and an indication lamp for the heater.

The integrated heater heats up in a short time and keeps the temperature of the spraying product at a constant level.

Suction of the glaze or jelly is done directly from the container or bowl in the machine. The machine cabinets of JELLY EASY I and II can hold two product containers. These jelly machines are also movable on swivel wheels and equipped with 1 of 2 spray guns.

  • Benefits
  • Compact
  • Easy to operate
  • Table Top
  • Easy to clean
  • HACCP
  • Options
  • Machine capacity

Medium

  • Products

Various (semi-) liquid products

  • Stand-alone machine
  • Dimensions

Jelly Easy TT
430 x 470 x 355 mm
Weight + 30 kg

Jelly Easy I
1090 x 570 x 430 mm
Weight + 50 kg

Jelly Easy II
1090 x 570 x 430 mm
Weight + 55 kg

  • Technical specifications

Power
1.7 kW

Voltage
220 – 240 VAC

Heating capacity
1.5 kW (Jelly Easy TT)
2.7 kW (Jelly Easy I and II)

Spray pressure
3.2 bar

BAKON designs and manufactures

standardized and customized machines
