Dosing volume
10 – 1100 ml

2 of 3
Working table Manually adjustable (per 5 or 10 mm.) 3 of 3

Accurate depositing

BD9

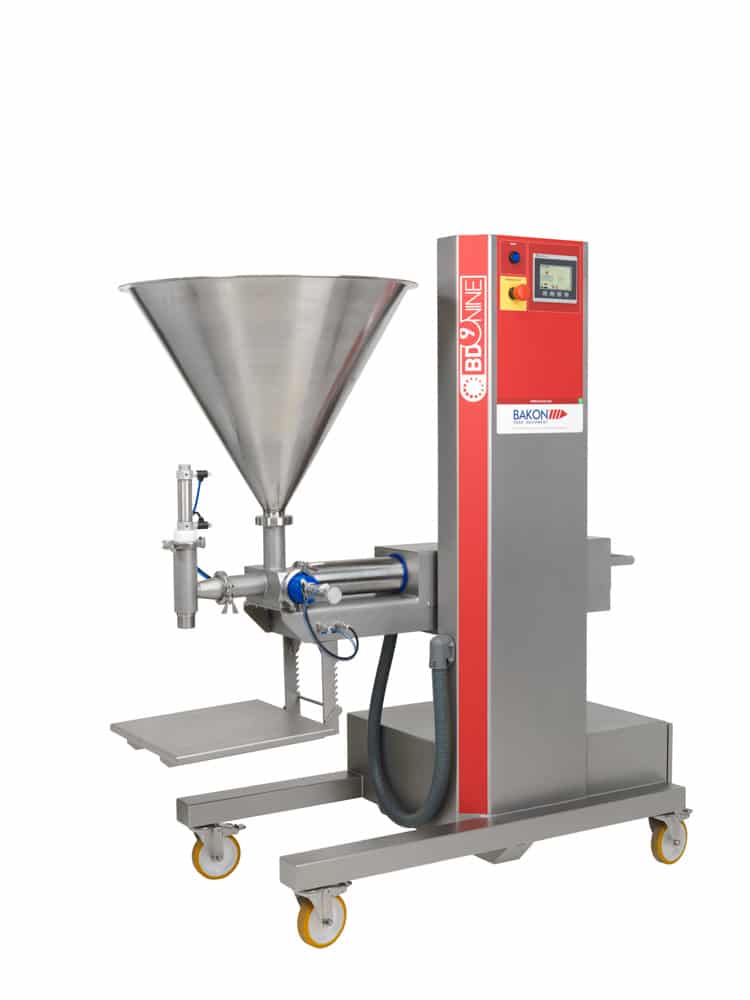

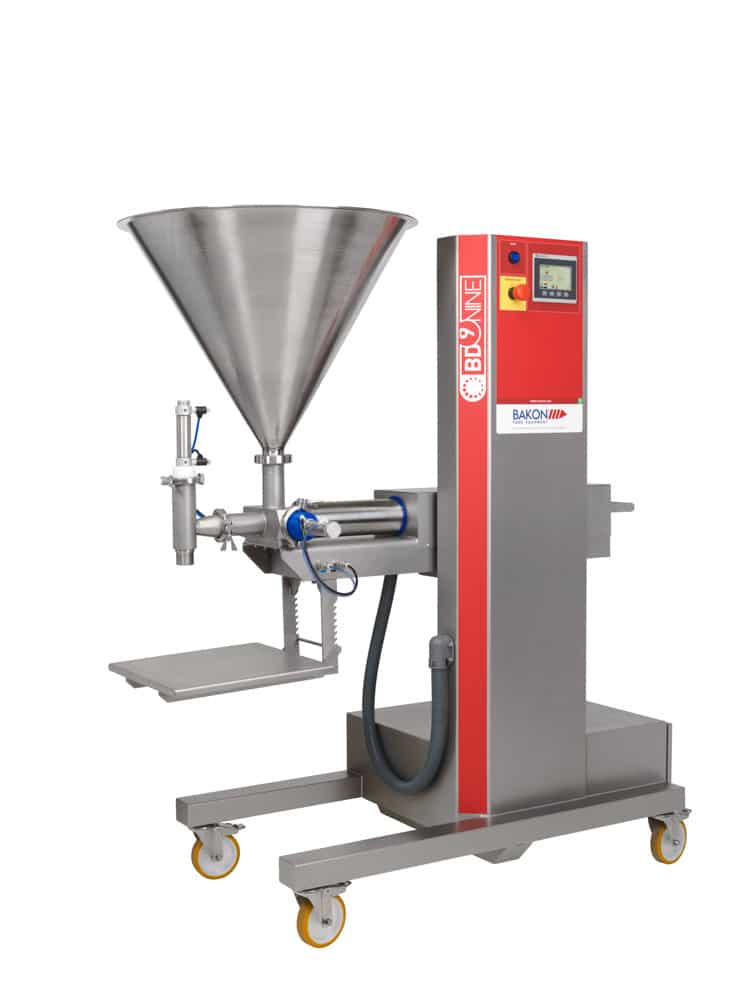

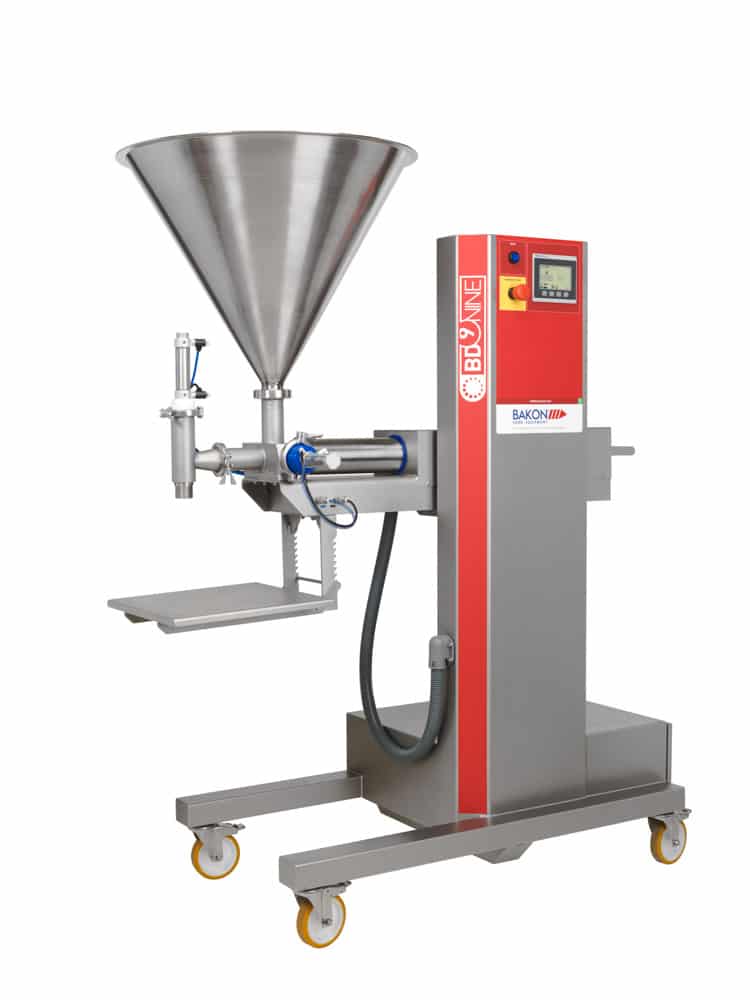

Accurate depositing is done with the BD9 by BAKON

The BD9 is a very advanced depositing machine that guarantees years of efficient production.

This versatile and reliable BD9 DEPOSITOR deposits liquid and semi-liquid products with great accuracy. Due to the servo-driven depositing cylinder there is perfect control over the depositing movement.

Recipe selection and product changes are easily accomplished using the full-colour touchscreen (available in many languages).

Key features

  • Full-colour touch screen
  • Dosing speed is very accurate adjustable through the full-colour touch screen
  • Working table is manually adjustable in height
  • Key features
  • Equipped with full-colour touch screen for easy setting and storing of recipes and parameters, such as working height, dosing speed, cylinder type, etc.
  • Hopper volume: 35 or 65 liter.
  • Dosing volumes: 10-100, 36-180, 110-475 and 220-1100 ml.
  • Dosing speed is very accurate adjustable through the full-colour touch screen.
  • Electrically adjustable dosing unit (can be set at any height).
  • Working table is manually adjustable in height.
  • Easily movable on 4 swivels casters (2 with brakes).
  • Completely stainless steel and other non-corroding materials.
  • Operation

The BD9 DEPOSITOR is ready for use within minutes. Move the BD9 into the right working position, fill the hopper (which is easy to lower by an electrical drive), choose the right recipe and the BD9 is ready to start depositing.

Due to the unique full-colour control panel and the advanced software system it’s easy to program different recipes and parameters. With the recipe tool you are able to compose and store specific recipes for different products.

Cleaning and (dis)assembling of the machine are simply done and without the use of any tools.

  • Benefits
  • Industrial design
  • Robust and strong
  • Economical
  • Movable
  • Easy to operate
  • Hygenic design
  • Options
  • Cylinder with piston 10/100 ml
  • Cylinder with piston 36/180 ml
  • Cylinder with piston 110/475 ml
  • Cylinder with piston 220/1100 ml
  • Handgun with hose
  • Vertical and horizontal cut off nozzle
  • Dripless nozzles
  • Adapter for different spouts
  • Dosing outlet 90° curve

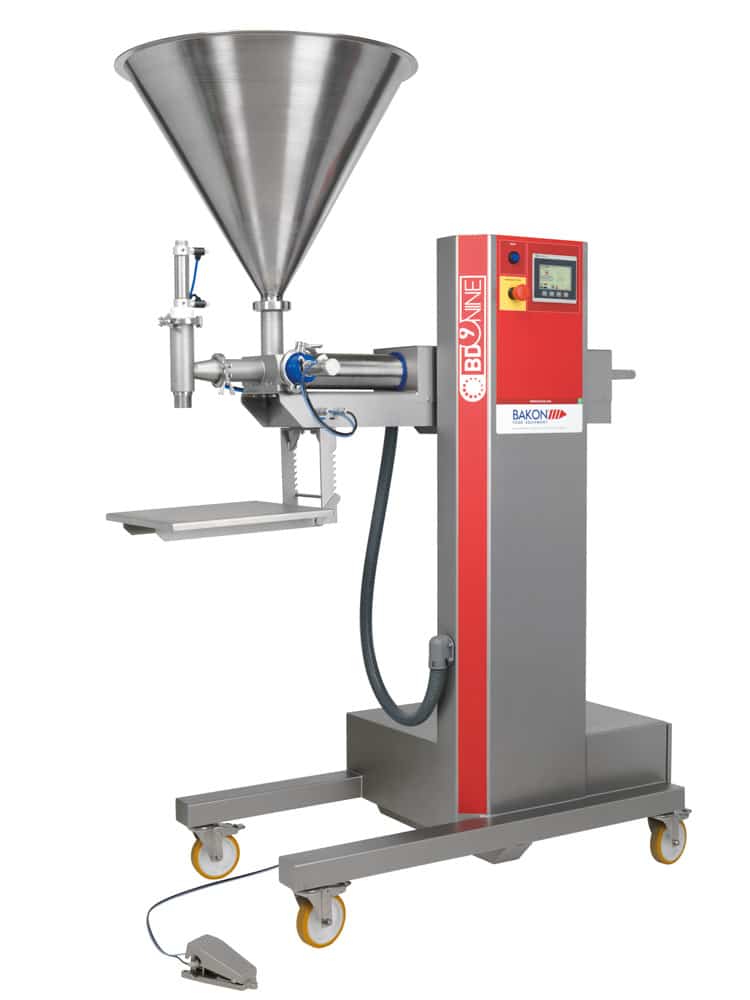

  • Foot pedal
  • Decorating heads
  • Injection needles
  • Cake Decorator unit
  • Funnel 35 of 65 liter
  • Various conveyor systems
  • Machine capacity

Medium to high

  • Semi-liquid products

e.g. cake batter, muffin batter, bavarois, jam, fruit fillings, crème, cream cheese, sauces, soups, etc.

  • Stand-alone machine
  • Inline machine
  • Dimensions

Depends on the model

  • Technical specifications

Air pressure
6 bar

Voltage
230 VAC – 50 Hz

Power
0,3 kW
